Iscar

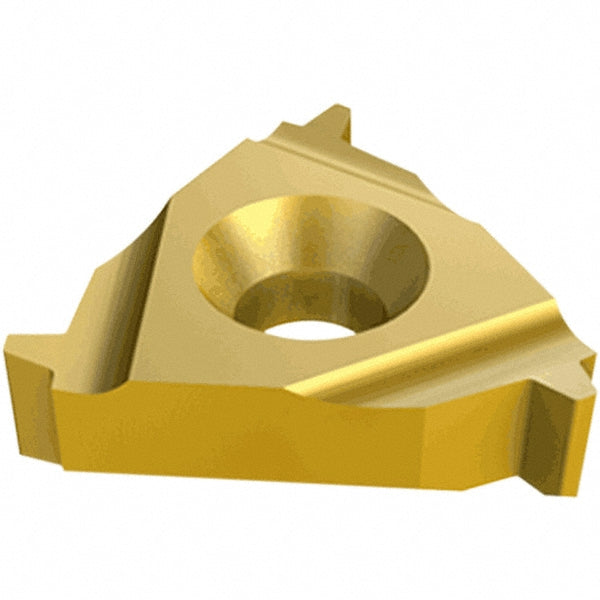

ISO 13399 Solid Carbide Insert, Grade IC50M - Iscar 5900941
MFR# 5900941ISO/ANSI# ISO 13399Series ISCARTHREAD
$20.31List $25.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC50M
MaterialSolid Carbide
Description
The Iscar 5900941 is a ISO 13399 solid carbide indexable insert, grade IC50M. Suited for cast iron, stainless steel, steel.
Specifications
Corner radius0.0020
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IR
Iso codeISO 13399
Manufacturer gradeIC50M
Pitch (mm)0.50 to 3.00
Primary workpiece materialCast Iron; Stainless Steel; Steel
StandardsISO 13399
Thickness0.1430
Threads per inch48-8
Thread typeInternal
