Iscar
ISO 13399 Carbide Insert, Grade IC228, TiN - Iscar 5901348
MFR# 5901348ISO/ANSI# ISO 13399Series ISCARTHREAD
$31.27List $40.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC228
MaterialCarbide
CoatingTiN
Description

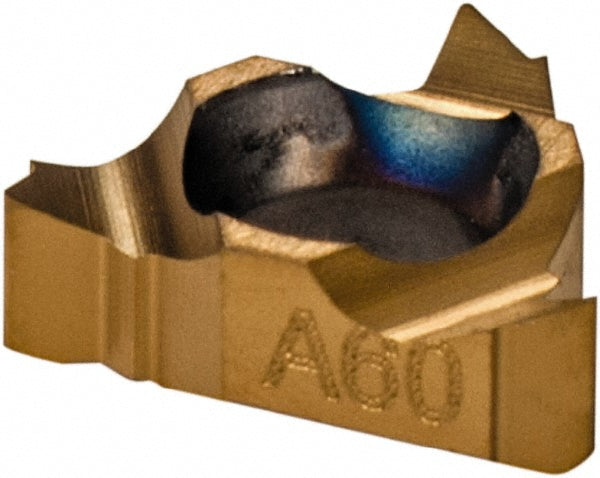

The Iscar 5901348 is a ISO 13399 carbide indexable insert, grade IC228, TiN coated. Suited for universal.
Specifications
ChipbreakerB
Coating finishTiN
Coating processPVD
Corner radius0.0020
Inscribed circle (mm)3.96
Insert handRight Hand
Insert materialCarbide
Insert size code06
Insert style06IR
Iso codeISO 13399
Manufacturer gradeIC228
Pitch (mm)0.50-1.25
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.0470
Threads per inch48-16
Thread standardPartial Profile 60 Degree
Thread typeInternal
