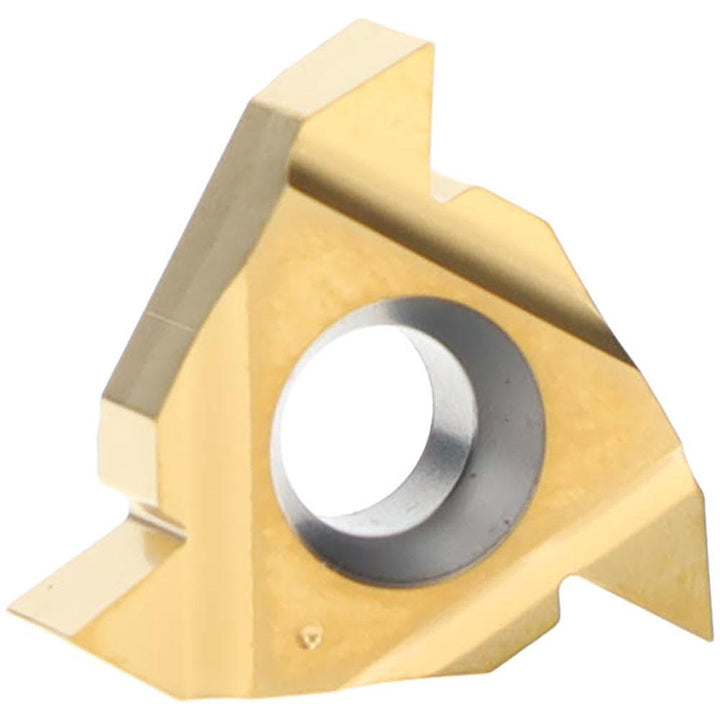

ISO 13399 Solid Carbide Insert, Grade IC508, Coated - Iscar 5901417
MFR# 5901417ISO/ANSI# ISO 13399Series ISCARTHREAD
$26.27List $33.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC508
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5901417 is a ISO 13399 solid carbide indexable insert, grade IC508, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0020
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Iso codeISO 13399
Manufacturer gradeIC508
Pitch (mm)0.50 to 3.00
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch48-8
Thread typeExternal
