Iscar

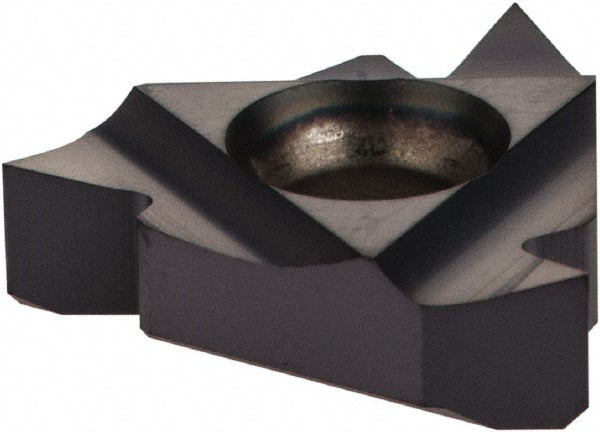

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5901910
MFR# 5901910ISO/ANSI# ISO 13399Series ISCARTHREAD
$26.27List $33.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5901910 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.05
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IR
Iso codeISO 13399
Manufacturer gradeIC908
Pitch (mm)0.50-3.00
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch48-8
Thread standardPartial Profile 60 Degree
Thread typeInternal
