Iscar

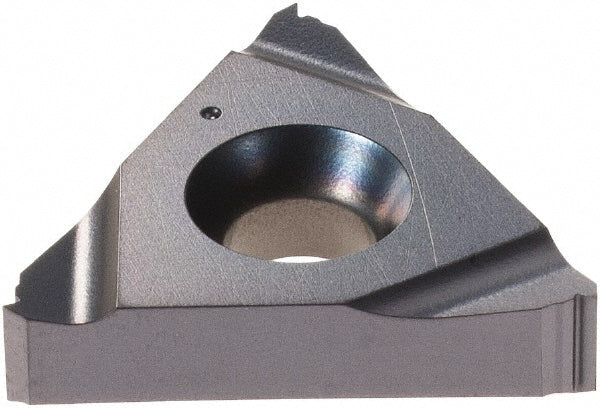

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5902012
MFR# 5902012ISO/ANSI# ISO 13399Series ISCARTHREAD
$26.27List $33.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5902012 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerB
Coating finishCoated
Coating processPVD
Corner radius0.0020
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch56
Thread standardUN
Thread typeExternal
