Iscar

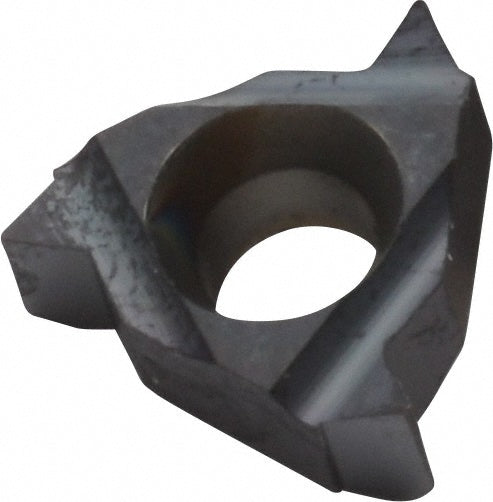

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5902030
MFR# 5902030ISO/ANSI# ISO 13399Series ISCARTHREAD
$26.27List $33.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5902030 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerB
Coating finishCoated
Coating processPVD
Corner radius0.0030
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code11
Insert style11IR
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeSubmicron
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1260
Threads per inch14
Thread standardNPT
Thread typeInternal
