Iscar

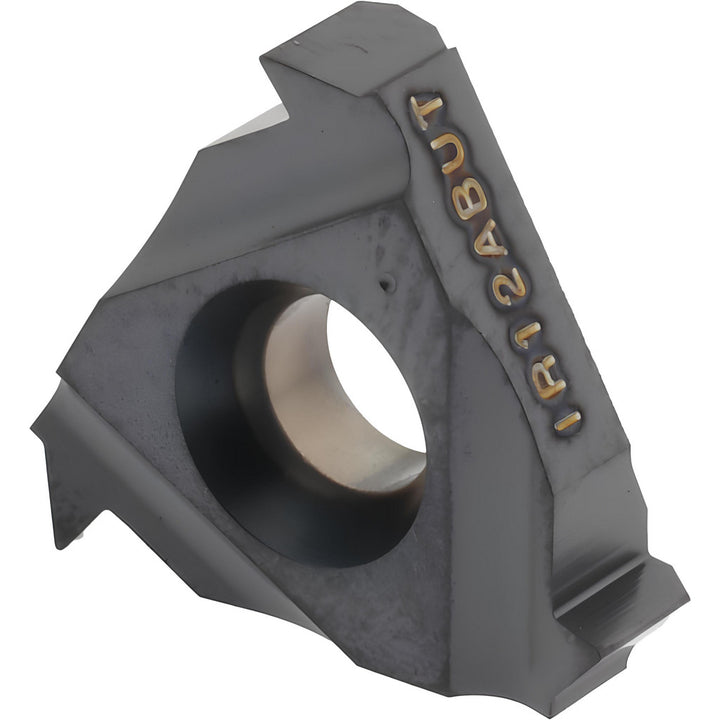

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5902084
MFR# 5902084ISO/ANSI# ISO 13399Series ISCARTHREAD
$30.17List $38.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5902084 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0047
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IR
Iso codeISO 13399
Manufacturer gradeIC908
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch12
Thread standardAmerican Buttress
Thread typeInternal
