Iscar

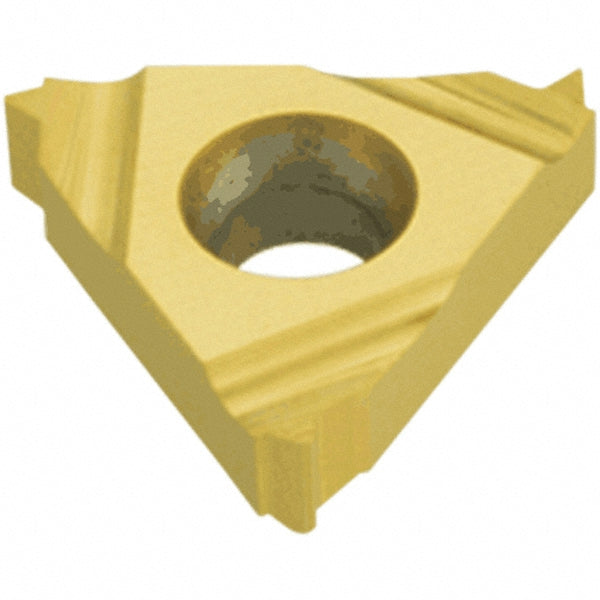

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5902163
MFR# 5902163ISO/ANSI# ISO 13399Series ISCARTHREAD
$37.97List $48.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5902163 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22ER
Iso codeISO 13399
Manufacturer gradeIC908
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1880
Threads per inch5
Thread standardStub Acme
Thread typeExternal
