Iscar

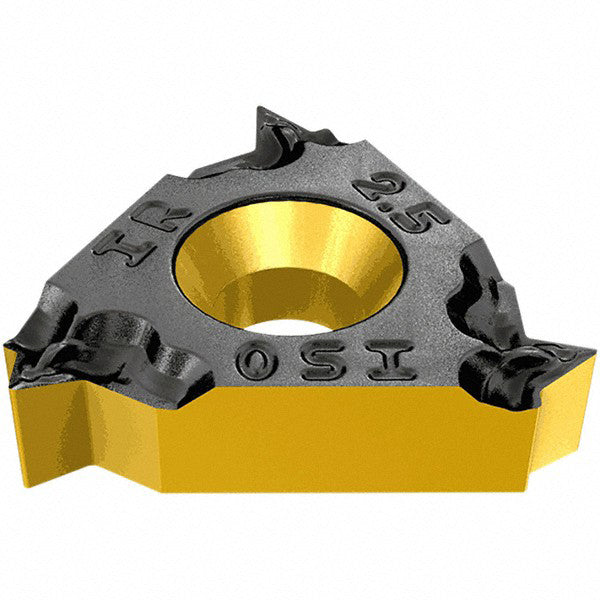

ISO 13399 Carbide Insert, Grade IC908, TiN - Iscar 5902306
MFR# 5902306ISO/ANSI# ISO 13399Series ISCARTHREAD
$34.36List $43.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC908
MaterialCarbide
CoatingTiN
Description
The Iscar 5902306 is a ISO 13399 carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
Coating finishTiN
Coating processPVD
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Iso codeISO 13399
Manufacturer gradeIC908
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch6
Thread standardStub Acme
Thread typeExternal
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
