Iscar

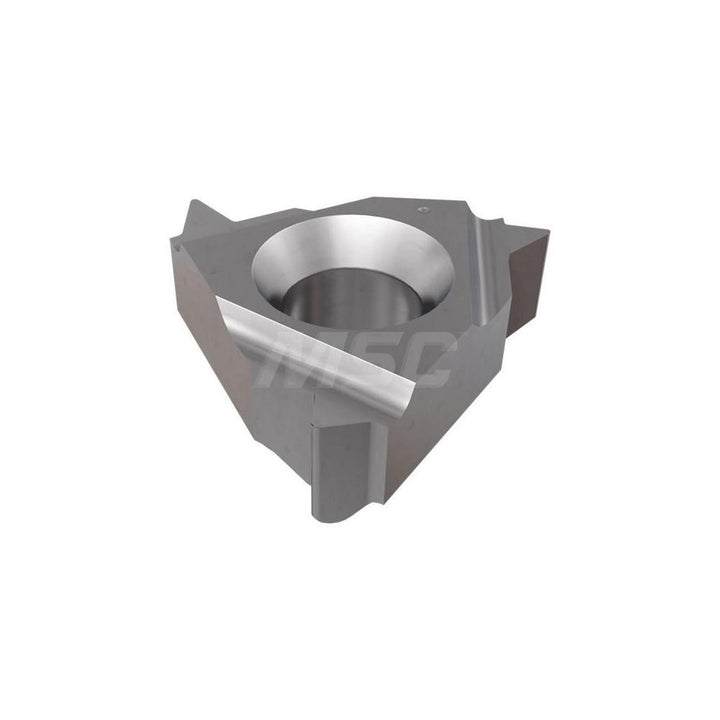

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5902437
MFR# 5902437ISO/ANSI# ISO 13399Series ISCARTHREAD
$53.57List $67.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5902437 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0035
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style22IR
Iso codeISO 13399
Manufacturer gradeIC908
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1880
Threads per inch16
Thread standardUN
Thread typeInternal
