Iscar

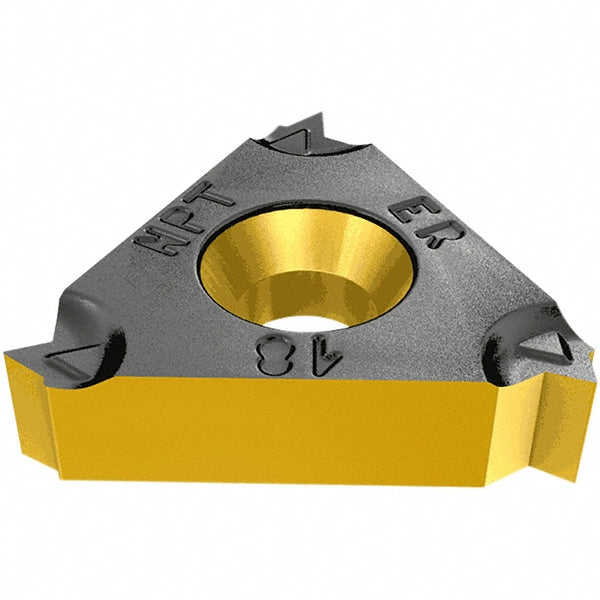

ISO 13399 Carbide Insert, Grade IC808, TiN - Iscar 5903398
MFR# 5903398ISO/ANSI# ISO 13399Series ISCARTHREAD
$24.44List $30.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC808
MaterialCarbide
CoatingTiN
Description
The Iscar 5903398 is a ISO 13399 carbide indexable insert, grade IC808, TiN coated. Suited for universal.
Specifications
ChipbreakerB
Coating finishTiN
Coating processPVD
Corner radius0.0050
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ERM
Iso codeISO 13399
Manufacturer gradeIC808
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch8
Thread standardNPT
Thread typeExternal
