Iscar

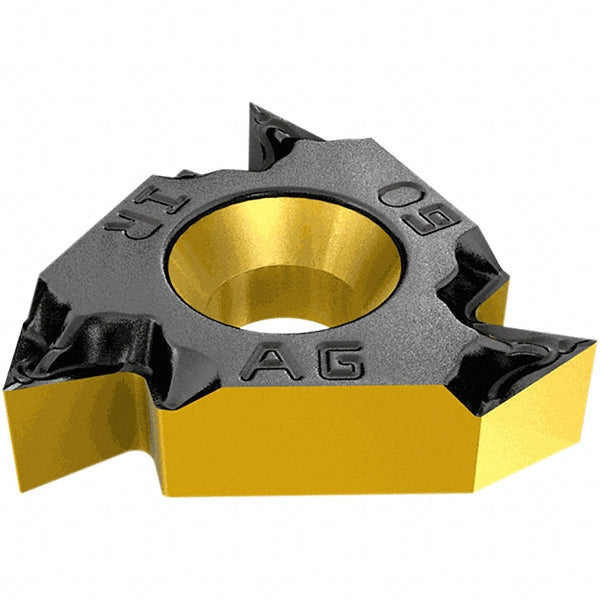

ISO 13399 Solid Carbide Insert, Grade IC1007, Coated - Iscar 5903466
MFR# 5903466ISO/ANSI# ISO 13399Series ISCARTHREAD
$21.99List $28.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC1007
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5903466 is a ISO 13399 solid carbide indexable insert, grade IC1007, Coated coated. Suited for universal.
Specifications
ChipbreakerM
Coating finishCoated
Coating processPVD
Corner radius0.0035
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IRM
Iso codeISO 13399
Manufacturer gradeIC1007
Material gradeSubmicron
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch16
Thread standardUN
Thread typeInternal
