Iscar

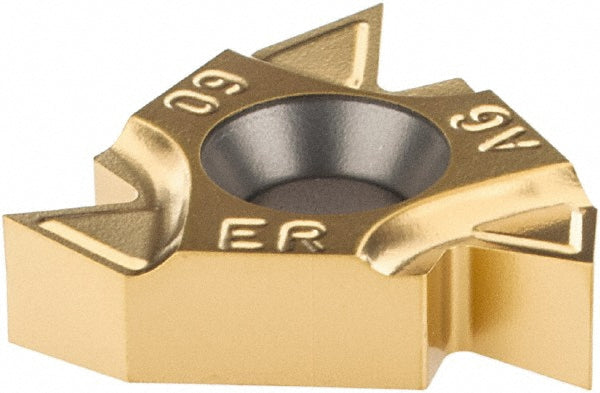

ISO 13399 Solid Carbide Insert, Grade IC508, TiCN - Iscar 5921196
MFR# 5921196ISO/ANSI# ISO 13399Series ISCARTHREAD
$21.99List $28.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC508
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5921196 is a ISO 13399 solid carbide indexable insert, grade IC508, TiCN coated. Suited for universal.
Specifications
ChipbreakerM
Coating finishTiCN
Coating processPVD
Corner radius (mm)0.06
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Iso codeISO 13399
Manufacturer gradeIC508
Pitch (mm)0.50-3.00
Primary workpiece materialUniversal
StandardsISO 13399
Thickness in3/8
Threads per inch48-8
Thread standardPartial Profile 60 Degree
Thread typeExternal
