Iscar

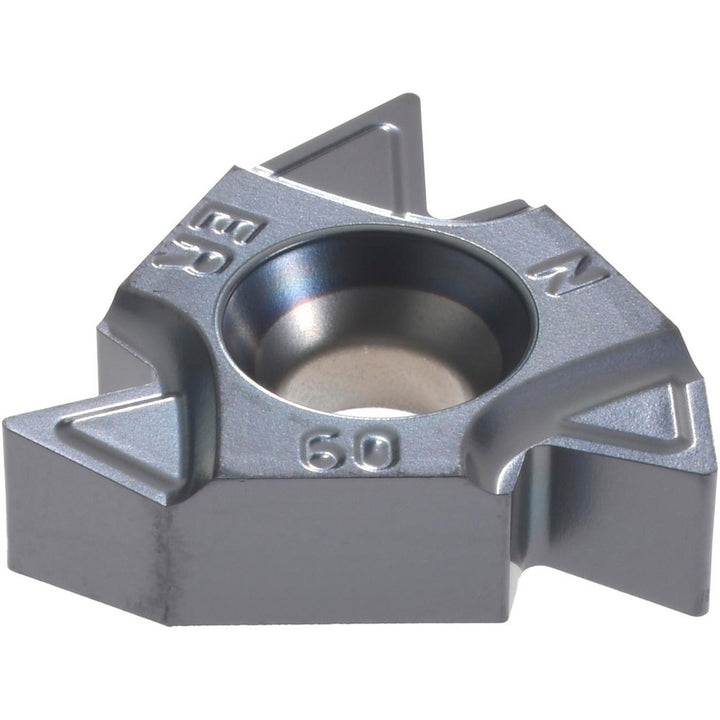

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5921208
MFR# 5921208ISO/ANSI# ISO 13399Series ISCARTHREAD
$27.83List $35.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5921208 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
ChipbreakerM
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.32
Inscribed circle in1/2
Insert handRight Hand
Insert materialCarbide
Insert size code22
Insert style22ER
Iso codeISO 13399
Manufacturer gradeIC908
Pitch (mm)3.50-5.00
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1880
Threads per inch7-5
Thread standardPartial Profile 60 Degree
Thread typeExternal
