Iscar

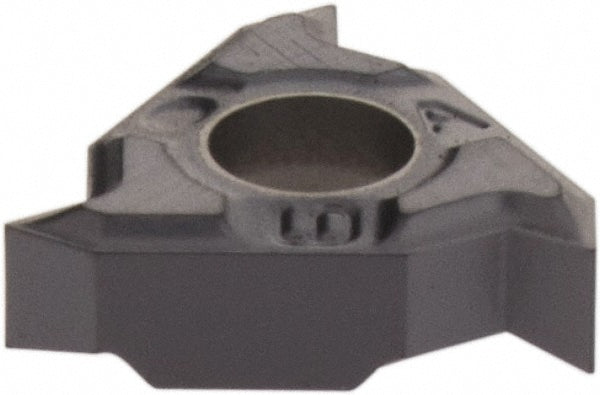

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5921209
MFR# 5921209ISO/ANSI# ISO 13399Series ISCARTHREAD
$27.75List $35.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5921209 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerM
Coating finishCoated
Coating processPVD
Corner radius (mm)0.05
Inscribed circle in3/16
Insert handRight Hand
Insert materialSolid Carbide
Insert size code08
Insert style08IR
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Pitch (mm)0.50 to 1.50
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.0790
Threads per inch48-16
Thread typeInternal
