Iscar

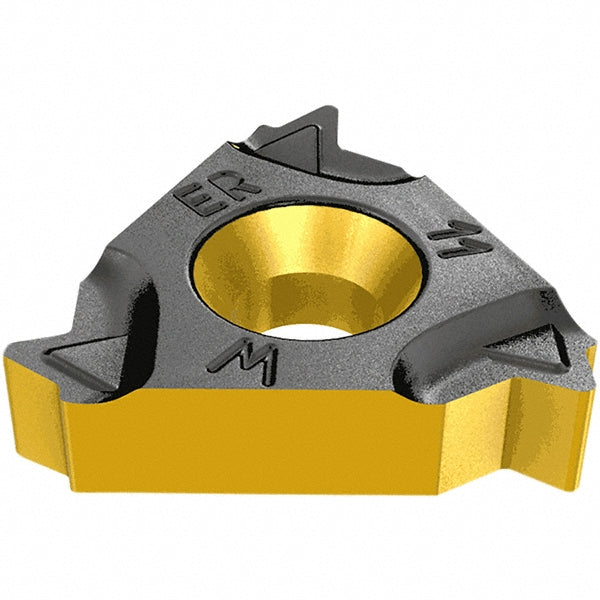

ISO 13399 Solid Carbide Insert, Grade IC808, Coated - Iscar 5921245
MFR# 5921245ISO/ANSI# ISO 13399Series ISCARTHREAD
$24.01List $30.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC808
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5921245 is a ISO 13399 solid carbide indexable insert, grade IC808, Coated coated. Suited for universal.
Specifications
ChipbreakerM
Coating finishCoated
Coating processPVD
Corner radius0.0040
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IRM
Iso codeISO 13399
Manufacturer gradeIC808
Pitch (mm)1.75 to 3.00
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch14-8
Thread typeInternal
