Iscar

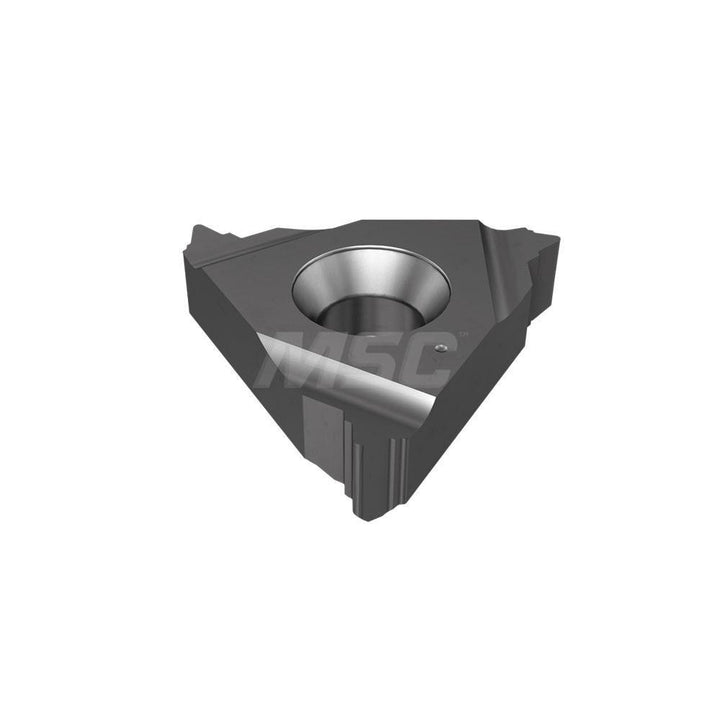

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5994680
MFR# 5994680ISO/ANSI# ISO 13399Series ISCARTHREAD
$30.17List $38.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5994680 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0189
Inscribed circle (mm)9.52
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Iso codeISO 13399
Manufacturer gradeIC908
Primary workpiece materialUniversal
StandardsISO 13399
Thickness0.1430
Threads per inch8
Thread standardUNJ
Thread typeExternal
