Iscar
ISO 13399 Solid Carbide Insert, Grade IC250, TiCN - Iscar 5999474
MFR# 5999474ISO/ANSI# ISO 13399Series ISCARTHREAD
$28.69List $36.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC250
MaterialSolid Carbide
CoatingTiCN
Description

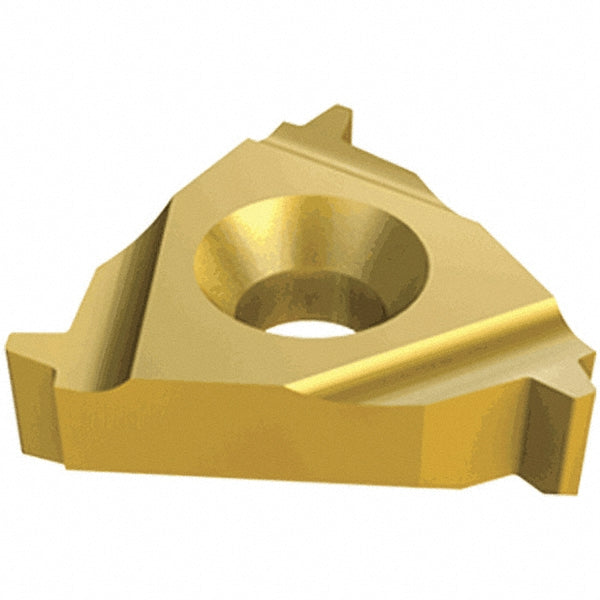

The Iscar 5999474 is a ISO 13399 solid carbide indexable insert, grade IC250, TiCN coated. Suited for cast iron, stainless steel, steel.
Specifications
Coating finishTiCN
Coating processPVD
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IR
Iso codeISO 13399
Manufacturer gradeIC250
Primary workpiece materialCast Iron; Stainless Steel; Steel
StandardsISO 13399
Thickness0.1430
Threads per inch6
Thread standardStub Acme
Thread typeInternal
