Iscar

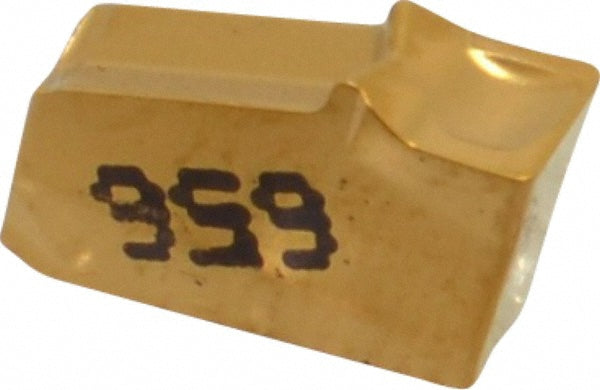

ISO 13399 Carbide Insert, Grade IC656, TiC - Iscar 6000025
MFR# 6000025ISO/ANSI# ISO 13399Cat# GFF 3RSeries Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC656
MaterialCarbide
CoatingTiC
Description
The Iscar 6000025 is a ISO 13399 carbide indexable insert, grade IC656, TiC coated. Suited for stainless steel, steel.
Specifications
Coating finishTiC
Coating processCVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialCarbide
Insert size3
Insert size code3
Insert styleGFF
Iso codeISO 13399
Manufacturers catalog numberGFF 3R
Manufacturer gradeIC656
Material gradeC5; C6
Measurement typeMetric
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
