Iscar
ISO 13399 Solid Carbide Insert, Grade IC635, TiC - Iscar 6000036
MFR# 6000036ISO/ANSI# ISO 13399Series Self-Grip
$23.71List $30.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC635
MaterialSolid Carbide
CoatingTiC
Description

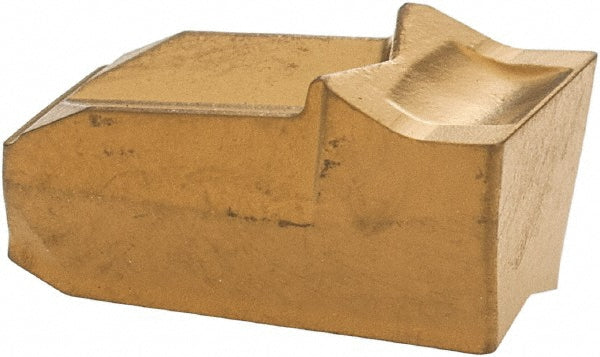

The Iscar 6000036 is a ISO 13399 solid carbide indexable insert, grade IC635, TiC coated. Suited for stainless steel, steel.
Specifications
Coating finishTiC
Coating processCVD
Corner radius0.0098
Cutting width0.2362
Full radiusNo
Gage diameter1.7323
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size6
Insert size code6
Insert styleGFF
Iso codeISO 13399
Manufacturer gradeIC635
Multi use toolNo
Overall width0.2362
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
