Iscar

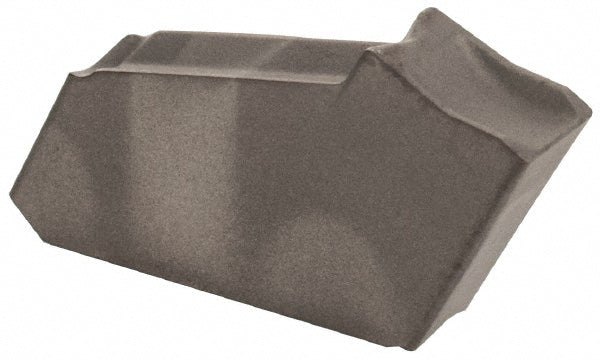

ISO 13399 Cermet Insert, Grade IC30N - Iscar 6000287
MFR# 6000287ISO/ANSI# ISO 13399Series Self-Grip
$15.36List $19.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC30N
MaterialCermet
Description
The Iscar 6000287 is a ISO 13399 cermet indexable insert, grade IC30N. Suited for stainless steel, steel.
Specifications
Coating processUncoated
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1193
Insert handNeutral
Insert holding methodClamp
Insert materialCermet
Insert size code3
Insert styleGFN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC30N
Material gradeC6; C7
Multi use toolYes
Overall width0.1193
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
