Iscar
Solid Carbide Insert, Grade IC54 - Iscar 6000314
MFR# 6000314Series Self-Grip
$14.69List $18.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC54
MaterialSolid Carbide
Description

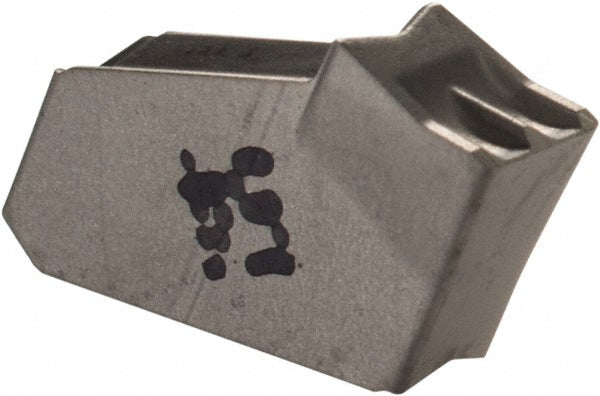

The Iscar 6000314 is a solid carbide indexable insert, grade IC54.
Specifications
ChipbreakerW
Coating processUncoated
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Insert styleGFN
Lead angle directionNeutral
Manufacturer gradeIC54
Material gradeC5
Multi use toolYes
Overall width0.1181
Relief angle7.00
Single or double endSingle
