Iscar

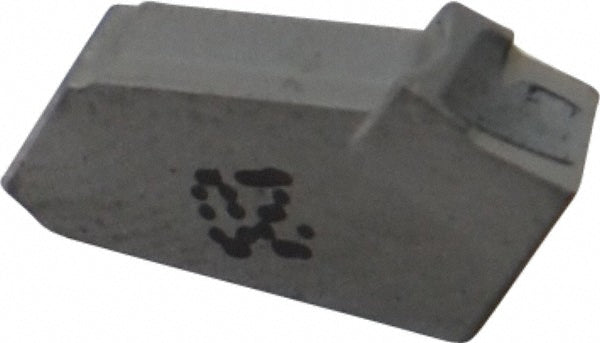

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6000455
MFR# 6000455ISO/ANSI# ISO 13399Cat# GFR 3-15DSeries Self-Grip
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6000455 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Coating processUncoated
Corner radius0.0079
Cutting tool applicationCut-off
Cutting width0.1181
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Insert styleGFR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberGFR 3-15D
Manufacturer gradeIC20
Material gradeC2; C3
Multi use toolNo
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
