Iscar
Solid Carbide Insert, Grade IC20 - Iscar 6000923
MFR# 6000923Series Self-Grip
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description

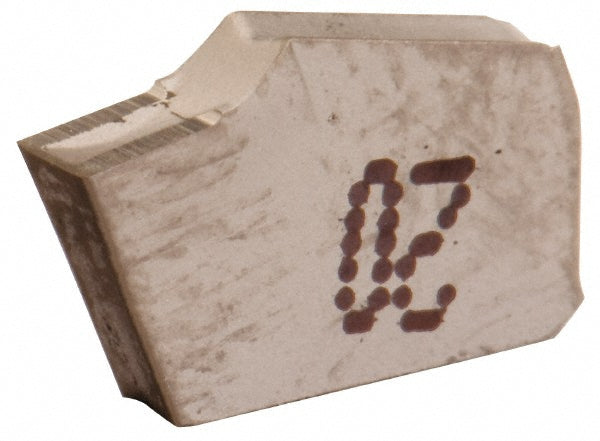

The Iscar 6000923 is a solid carbide indexable insert, grade IC20.
Specifications
Coating processUncoated
Corner radius0.0138
Cutting tool applicationCut-off
Cutting width0.2520
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size6
Insert size code6
Insert styleGTN
Lead angle0
Lead angle directionNeutral
Manufacturer gradeIC20
Material gradeC2; C3
Multi use toolNo
Relief angle7.00
Single or double endSingle
