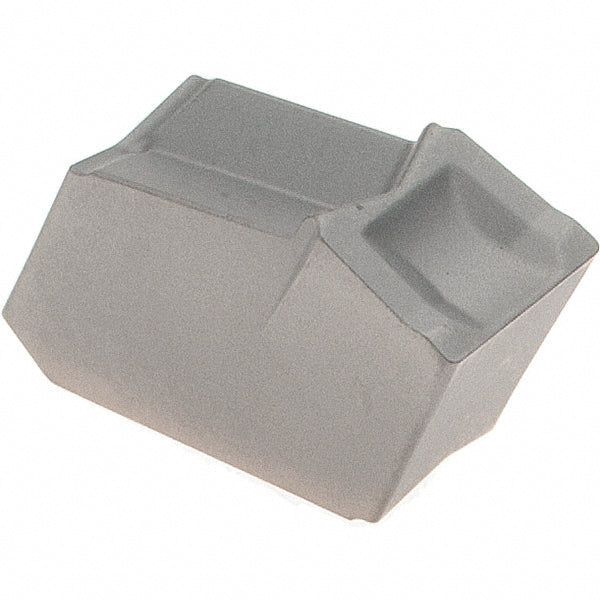

GSFN 5 Solid Carbide Insert, Grade IC20 - Iscar 6001318

Iscar

GSFN 5 Solid Carbide Insert, Grade IC20 - Iscar 6001318

MFR# 6001318ISO/ANSI# GSFN 5Cat# GSFN 5 IC20Series Self Grip

$16.45List $21.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIC20
MaterialSolid Carbide

Description

The Iscar 6001318 is a GSFN 5 solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeGSFN 5 IC20
Coating processUncoated
Corner radius0.0102
Cutter series compatibilitySGSF
Cutting edge effective length0.1960
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1961
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code5
Insert styleGSFN
Iso codeGSFN 5
Manufacturers catalog numberGSFN 5 IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Multi use toolYes
Number of cutting edges1
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1961
