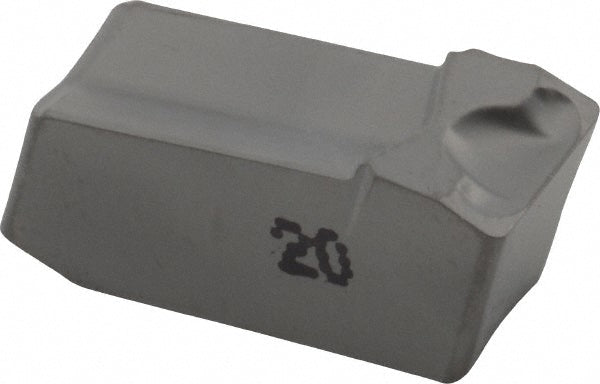

GSFN 6 Solid Carbide Insert, Grade IC20 - Iscar 6001383

Iscar

GSFN 6 Solid Carbide Insert, Grade IC20 - Iscar 6001383

MFR# 6001383ISO/ANSI# GSFN 6Cat# GSFN 6 IC20Series Self Grip

$17.85List $22.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIC20
MaterialSolid Carbide

Description

The Iscar 6001383 is a GSFN 6 solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeGSFN 6 IC20
Coating processUncoated
Corner radius0.0197
Cutter series compatibilitySGSF
Cutting edge effective length0.2510
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2508
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size6
Insert size code6
Insert styleGSFN
Iso codeGSFN 6
Manufacturers catalog numberGSFN 6 IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Multi use toolYes
Number of cutting edges1
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.2510
