Iscar

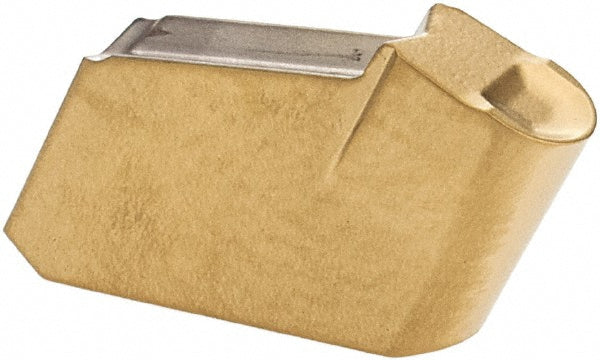

GSFU 3 Solid Carbide Insert, Grade IC250, TiCN - Iscar 6001597
MFR# 6001597ISO/ANSI# GSFU 3Cat# GSFU-3 IC250Series Self Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6001597 is a GSFU 3 solid carbide indexable insert, grade IC250, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeGSFU-3 IC250
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutter series compatibilitySGSF
Cutting edge effective length0.1181
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1181
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3
Insert size code3
Insert styleGSFU
Iso codeGSFU 3
Manufacturers catalog numberGSFU-3 IC250
Manufacturer gradeIC250
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1189
