Iscar

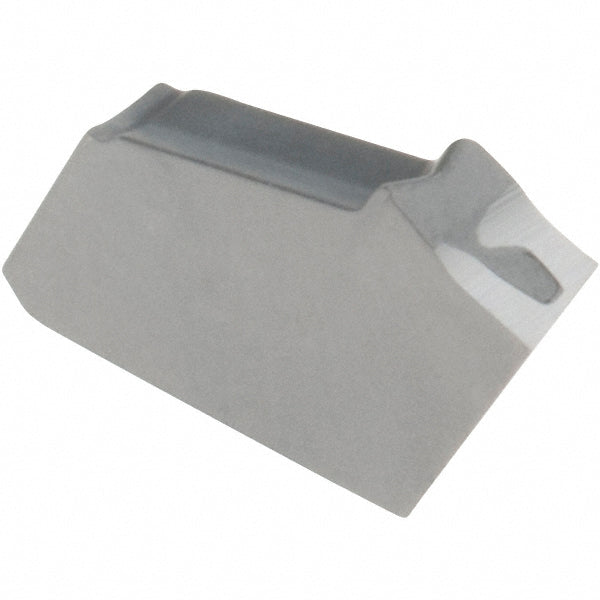

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6001862
MFR# 6001862ISO/ANSI# ISO 13399Series Self-Grip
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6001862 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
ChipbreakerS
Coating processUncoated
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.0866
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleGFR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturer gradeIC20
Material gradeC2; C3
Multi use toolNo
Overall width0.0866
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
