Iscar

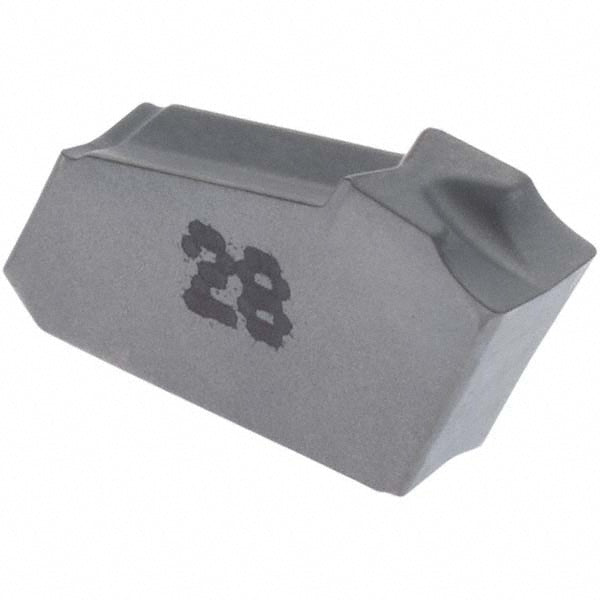

ISO 13399 Solid Carbide Insert, Grade IC28 - Iscar 6001897
MFR# 6001897ISO/ANSI# ISO 13399Series Self-Grip
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC28
MaterialSolid Carbide
Description
The Iscar 6001897 is a ISO 13399 solid carbide indexable insert, grade IC28. Suited for aluminum.
Specifications
ChipbreakerJ
Coating processUncoated
Corner radius0.0098
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturer gradeIC28
Material gradeC5; C6
Multi use toolYes
Primary workpiece materialAluminum
Relief angle7.00
Single or double endSingle
StandardsISO 13399
