Iscar

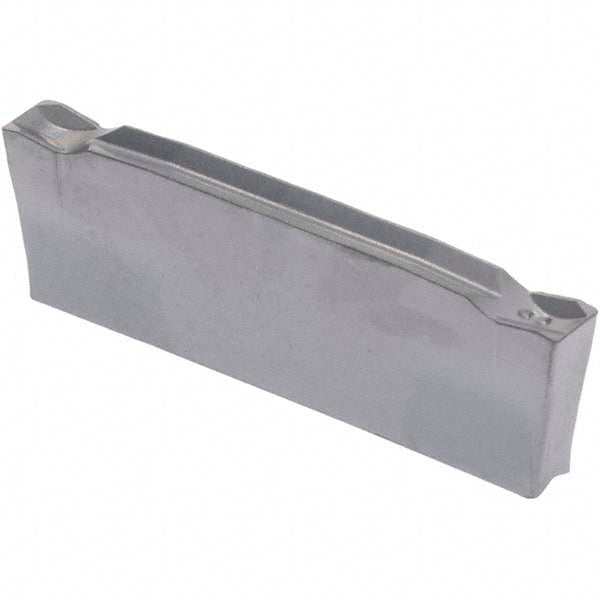

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6002317
MFR# 6002317ISO/ANSI# ISO 13399Series Do-Grip
$24.68List $31.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6002317 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
ChipbreakerC
Coating processUncoated
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0866
Insert handNeutral
Insert materialSolid Carbide
Insert size code2202
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7795
Overall width0.0866
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
