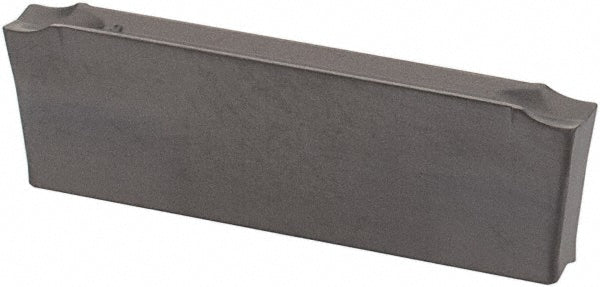

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6002321
MFR# 6002321ISO/ANSI# ISO 13399Cat# DGN 2202JSeries Do-Grip
$24.68List $31.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6002321 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
ChipbreakerJ
Coating processUncoated
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0866
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2202
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 2202J
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7795
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
