Iscar

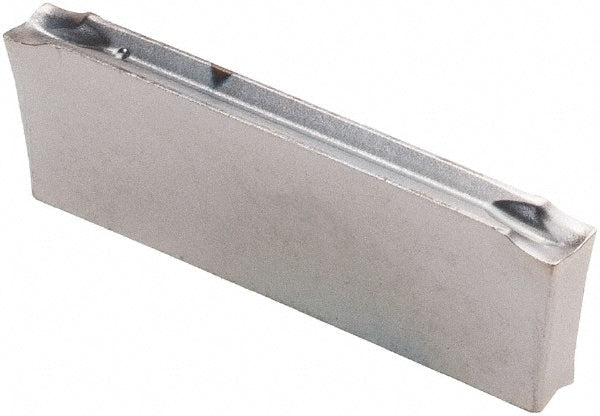

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002322
MFR# 6002322ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002322 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0866
Insert handNeutral
Insert materialSolid Carbide
Insert size code2202
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC354
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7795
Overall width0.0866
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
