Iscar

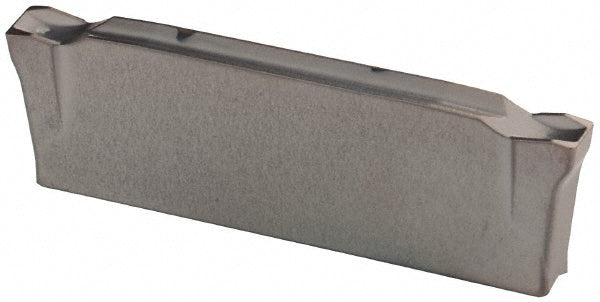

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002326
MFR# 6002326ISO/ANSI# ISO 13399Cat# DGR 2202C-6DSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002326 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.0866
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2202
Insert styleDGR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturers catalog numberDGR 2202C-6D
Manufacturer gradeIC354
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8189
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
