Iscar

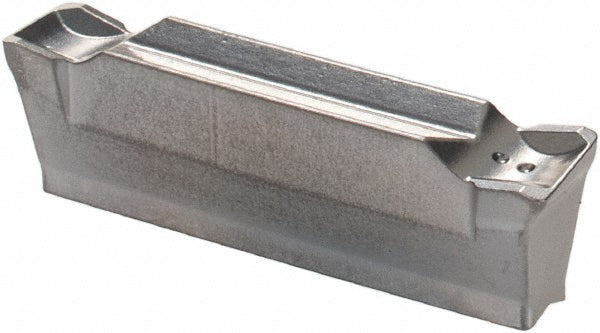

ISO 13399 Solid Carbide Insert, Grade IC354, TiN - Iscar 6002368
MFR# 6002368ISO/ANSI# ISO 13399Cat# DGR 4003C-4DSeries Cut-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6002368 is a ISO 13399 solid carbide indexable insert, grade IC354, TiN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0120
Cutting tool applicationParting
Cutting width0.1570
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code4003
Insert styleDGR
Iso codeISO 13399
Lead angle4
Lead angle directionRight Hand
Manufacturers catalog numberDGR 4003C-4D
Manufacturer gradeIC354
Material gradeP40
Multi use toolNo
Overall length0.7400
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
