Iscar

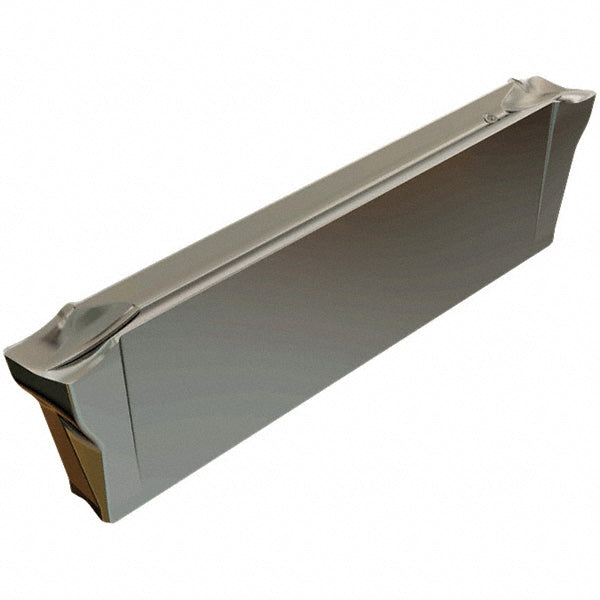

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002393
MFR# 6002393ISO/ANSI# ISO 13399Series Do-Grip
$37.09List $47.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002393 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0118
Cutting tool applicationParting
Cutting width0.1969
Insert handLeft Hand
Insert materialSolid Carbide
Insert size code5003
Insert styleDGL
Iso codeISO 13399
Lead angle4
Lead angle directionLeft Hand
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolNo
Overall length0.7480
Overall width0.1969
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
