Iscar

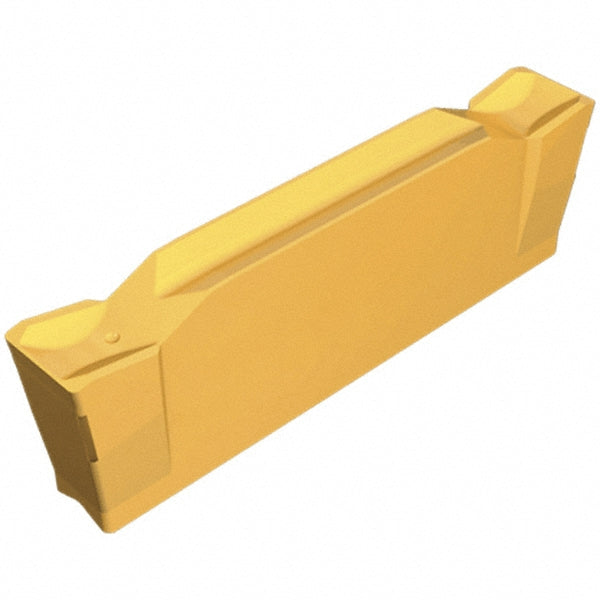

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002397
MFR# 6002397ISO/ANSI# ISO 13399Cat# DGN 6303CSeries Do-Grip
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002397 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0138
Cutting tool applicationGrooving; Parting
Cutting width0.2500
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code6303
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 6303C
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolYes
Overall length0.7520
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
