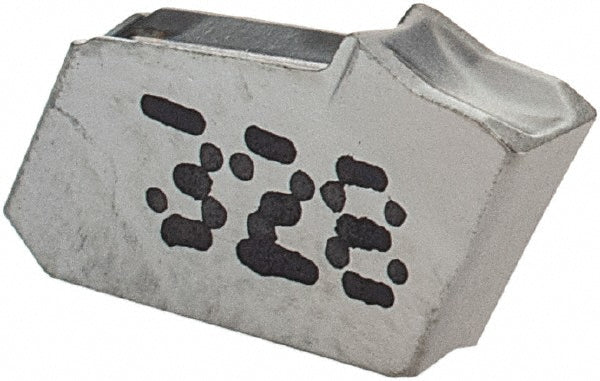

GSFN 2 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6002434

Iscar

GSFN 2 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6002434

MFR# 6002434ISO/ANSI# GSFN 2Cat# GSFN 2 IC328Series Self Grip

$18.17List $23.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 6002434 is a GSFN 2 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeGSFN 2 IC328
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutter series compatibilitySGSF
Cutting edge effective length0.0787
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.0787
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size2
Insert size code2
Insert styleGTN
Iso codeGSFN 2
Manufacturers catalog numberGSFN 2 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.3150
Thickness range0.2500 to 0.3500
Width0.0790
