Iscar
ISO 13399 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6002435
MFR# 6002435ISO/ANSI# ISO 13399Series Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description

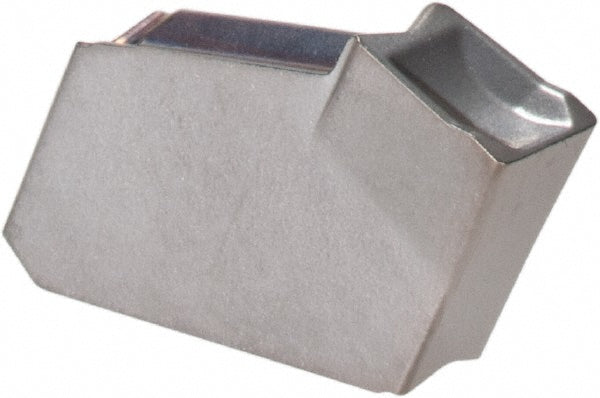

The Iscar 6002435 is a ISO 13399 solid carbide indexable insert, grade IC328, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Cutting width0.1189
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert size code3
Insert styleGSFN
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
StandardsISO 13399
