Iscar

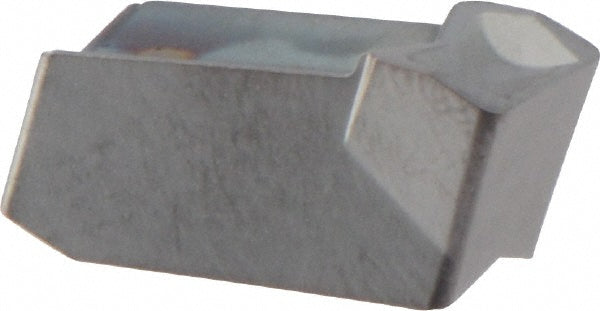

GSFN 6C Solid Carbide Insert, Grade IC328, TiCN - Iscar 6002438
MFR# 6002438ISO/ANSI# GSFN 6CCat# GSFN 6C IC328Series Self Grip
$20.67List $26.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRectangle
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6002438 is a GSFN 6C solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeGSFN 6C IC328
Chip breakerC
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilitySGSF
Cutting edge effective length0.2500
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size6
Insert size code6
Insert styleGSFN
Iso codeGSFN 6C
Manufacturers catalog numberGSFN 6C IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width in1/4
