Iscar

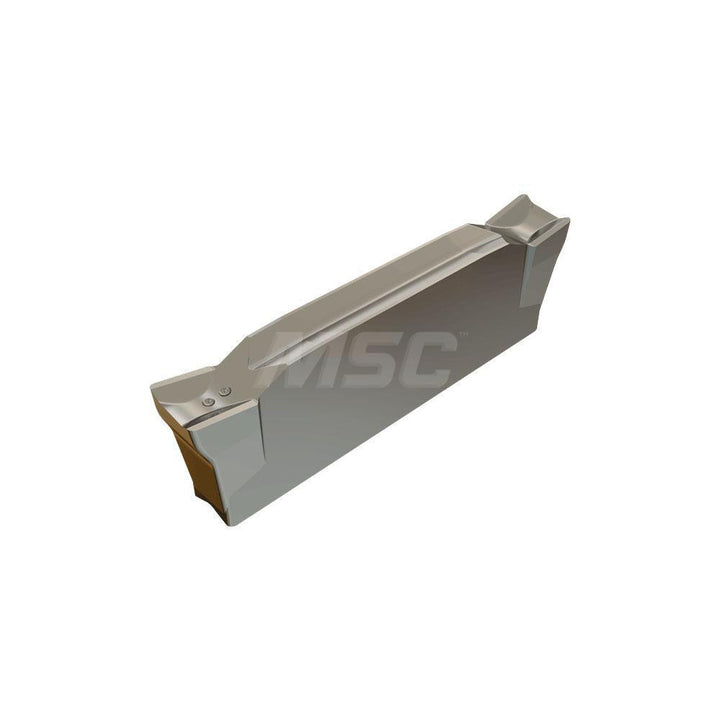

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002465
MFR# 6002465ISO/ANSI# ISO 13399Cat# DGR 4003C-4DSeries Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002465 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0118
Cutting tool applicationParting
Cutting width0.1575
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4003
Insert styleDGR
Iso codeISO 13399
Lead angle4
Lead angle directionRight Hand
Manufacturers catalog numberDGR 4003C-4D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Overall length0.7402
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
