Iscar

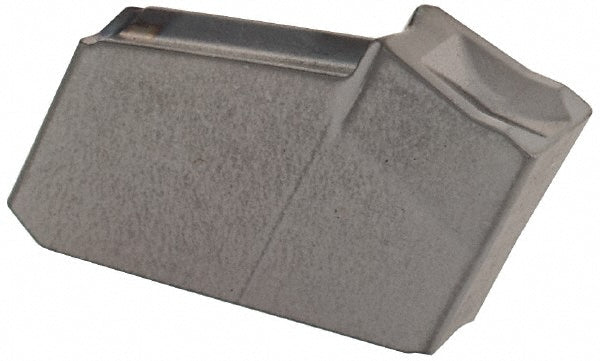

GSFN 2.4 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6002473
MFR# 6002473ISO/ANSI# GSFN 2.4Cat# GSFN 2.4 IC328Series Self Grip
$18.49List $23.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6002473 is a GSFN 2.4 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeGSFN 2.4 IC328
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutter series compatibilitySGSF
Cutting edge effective length0.0950
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.0949
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size2.4
Insert size code2.4
Insert styleGSFN
Iso codeGSFN 2.4
Manufacturers catalog numberGSFN 2.4 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.0949
