Iscar

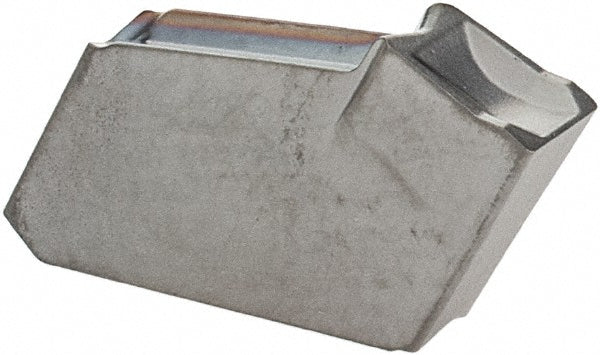

GSFN 3.2 Solid Carbide Insert, Grade IC328, TiCN - Iscar 6002475
MFR# 6002475ISO/ANSI# GSFN 3.2Cat# GSFN 3.2 IC328Series Self Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6002475 is a GSFN 3.2 solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeGSFN 3.2 IC328
Coating finishTiCN
Coating processPVD
Corner radius0.0087
Cutter series compatibilitySGSF
Cutting edge effective length0.1260
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1260
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3.2
Insert size code3.2
Insert styleGSFN
Iso codeGSFN 3.2
Manufacturers catalog numberGSFN 3.2 IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1260
