Iscar

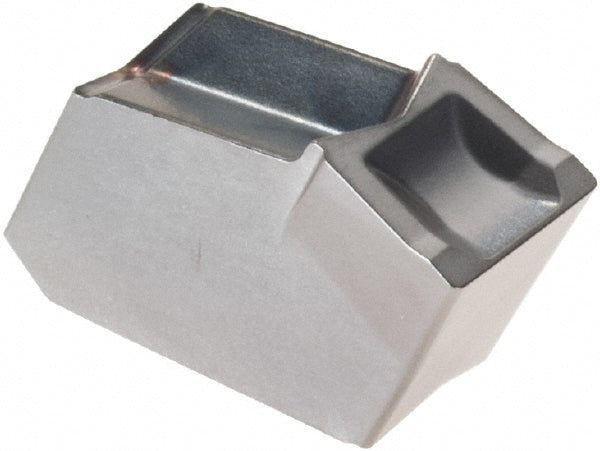

ISO 13399 Carbide Insert, Grade IC328, TiCN - Iscar 6002477
MFR# 6002477ISO/ANSI# ISO 13399Series Self-Grip
$21.59List $27.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialCarbide
CoatingTiCN
Description
The Iscar 6002477 is a ISO 13399 carbide indexable insert, grade IC328, TiCN coated. Suited for superalloys, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0098
Cutting width0.189
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size48
Insert size code48
Insert styleGSFN
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
