Iscar

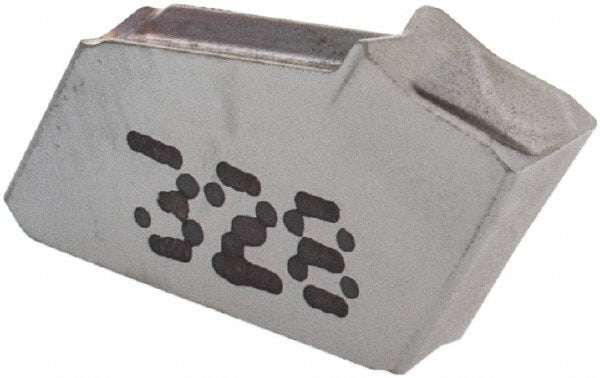

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002500
MFR# 6002500ISO/ANSI# ISO 13399Cat# GFN 2Series Self-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002500 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0063
Cutting tool applicationGrooving; Parting
Cutting width0.0866
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 2
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
