Iscar

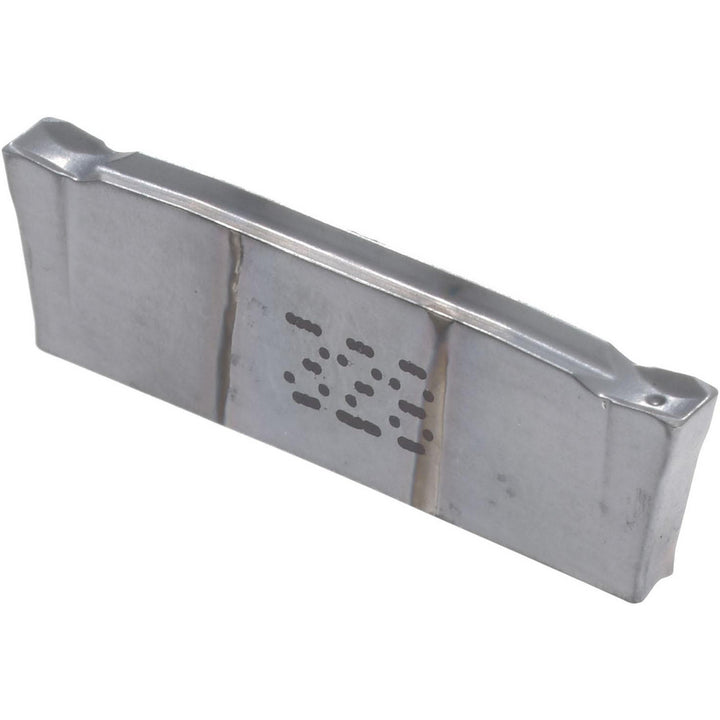

ISO 13399 Carbide Insert, Grade IC328, Coated - Iscar 6002506
MFR# 6002506ISO/ANSI# ISO 13399Cat# DGN 2002CSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialCarbide
CoatingCoated
Description
The Iscar 6002506 is a ISO 13399 carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code2002
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 2002C
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7835
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
