Iscar

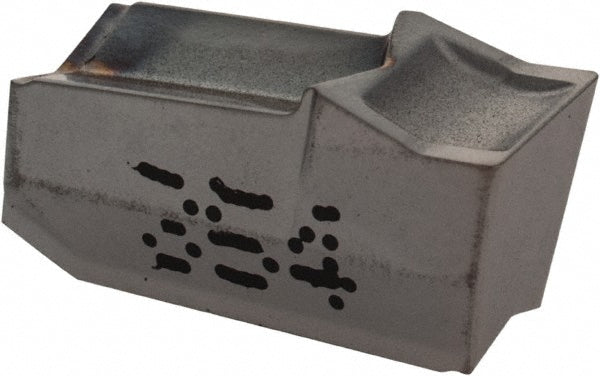

ISO 13399 Solid Carbide Insert, Grade IC354, TiCN - Iscar 6002515
MFR# 6002515ISO/ANSI# ISO 13399Cat# GFF 5NSeries Self-Grip
$21.98List $27.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6002515 is a ISO 13399 solid carbide indexable insert, grade IC354, TiCN coated. Suited for stainless steel, steel.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0098
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size5
Insert size code5
Insert styleGFF
Iso codeISO 13399
Lead angle0
Manufacturers catalog numberGFF 5N
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
StandardsISO 13399
