Iscar

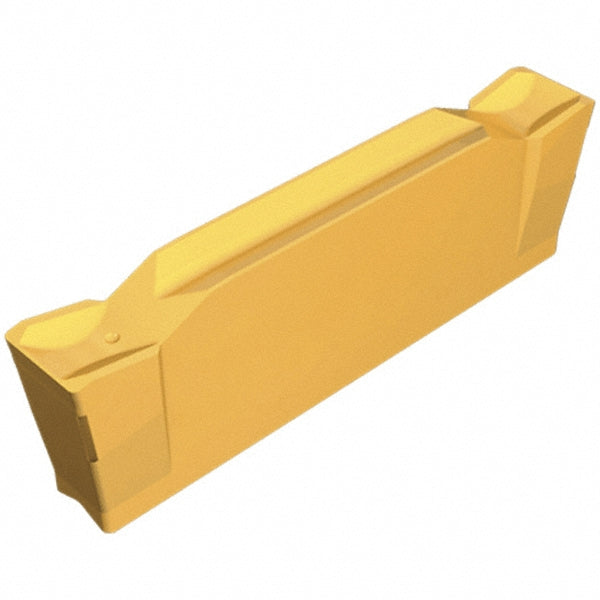

ISO 13399 Cermet Insert, Grade IC30N - Iscar 6002529
MFR# 6002529ISO/ANSI# ISO 13399Series Do-Grip
$27.10List $34.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC30N
MaterialCermet
Description
The Iscar 6002529 is a ISO 13399 cermet indexable insert, grade IC30N. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating processUncoated
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert materialCermet
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC30N
Material gradeC6; C7
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Overall width0.1220
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
