Iscar

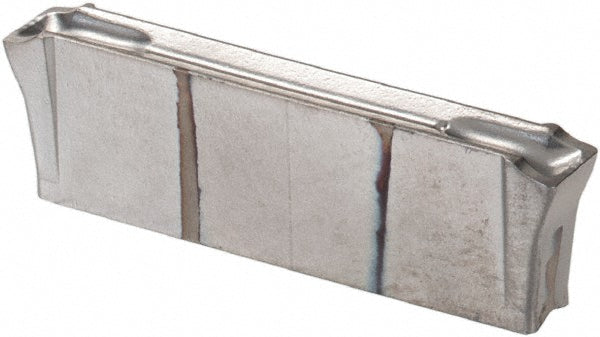

ISO 13399 Solid Carbide Insert, Grade IC328, TiN - Iscar 6002533
MFR# 6002533ISO/ANSI# ISO 13399Cat# DGN 3003UASeries Cut-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6002533 is a ISO 13399 solid carbide indexable insert, grade IC328, TiN coated. Suited for superalloy.
Specifications
ChipbreakerUA
Coating finishTiN
Coating processPVD
Corner radius0.0100
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3003
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 3003UA
Manufacturer gradeIC328
Material gradeP45-K40
Maximum depth of cut0.7090
Multi use toolYes
Overall length0.8070
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsISO 13399
