Iscar

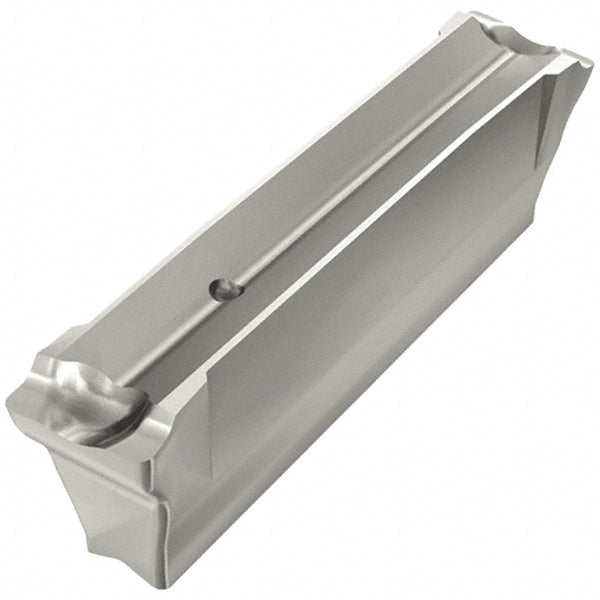

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002534
MFR# 6002534ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002534 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerUA
Coating finishCoated
Coating processPVD
Corner radius0.0098
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert size code3003
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC354
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.8071
Overall width0.1181
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
