Iscar

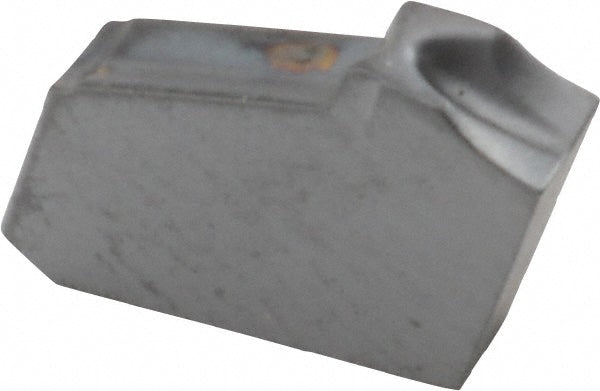

ISO 13399 Carbide Insert, Grade IC354, Coated - Iscar 6002565
MFR# 6002565ISO/ANSI# ISO 13399Series Self-Grip
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialCarbide
CoatingCoated
Description
The Iscar 6002565 is a ISO 13399 carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.0630
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size code1.6
Insert styleGFR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolNo
Overall width0.0630
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
